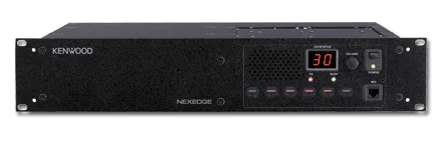

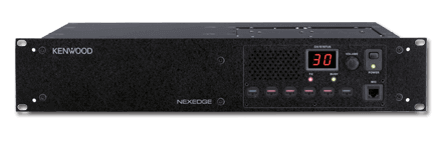

KENWOOD's NXR-710 and NXR-810 NEXEDGE® repeater is a low-cost, high-performance unit that provides a cost-effective infrastructure solution for single-site, local area applications. The NXR-710 and NXR-810 will provide analog or digital operation and is perfectly suited for a variety of operating environments such as sewage treatment plants, hospitals and hotels.
The NXR-710 and NXR-810 NEXEDGE® repeaters may be used as standalone 25 watt continuous or 40 watt intermittent duty stations or in conjunction with an external power amplifier. They both operate in analog mode at 25 KHz or 12.5 KHz, or in digital mode at 12.5 KHz or 6.25 KHz.
Frequency Band:
VHF/UHF
Frequency Range:
136-174 MHz (NXR-710) / 450-520 MHz, 400-470 MHz (NXR-810)
Power Output:
25W - 50W (NXR-710) / 25W - 40W (NXR-810)
Number of Channels/Groups/Zones:
30 Channels
Channel spacing:
12.5 / 15 / 25 / 30 kHz, 12.5 / 25 kHz Analog
6.25 / 7.5 / 12.5 / 15 kHz, 6.25 / 12.5 kHz Digital
Dimensions W x H x D
19 x 3-1/2 x 13-1/3 in
Weight
21.4 lbs
Keypad / Keys
No Keypad
Display
No Display
Operating temperature
-22˚ F to +140˚ F
Mil spec
N/A
IP Standards
N/A
