Designed for Analog or P25 Simplex Fireground Operations
Enhances communication awareness in a dynamic fire scene environment, allowing firefighters to focus on the mission at hand.
- Establish Commander & Responder Roles
- Set & Forget (single button lock function)
- Out of Range Indication
- Evacuation Alert
- P25 Auto Switch (extends communication range when operating in analog mode)
- Visual & Audible Communication Signal Strength Indicators
Set & Forget
Common Problem: Firefighter is on the wrong channel, the volume is too low, or the radio is accidentally turned off
Solution: Enabling the Fireground mode of operation is as easy as pressing a single button and ensures that the firefighter does not inadvertently lose communications with command. The keypad and channel selector can be locked as well as the volume level, so the radio cannot be accidentally turned off. A single button press switches the radio from dispatch mode to Fireground mode
Evacuation Alert
Common Problem: Firefighter misses an evacuation call.
Solution: Firefighter hears a loud tone when an evacuation alert is received from a command radio. Digital signaling has a higher likelihood of being received because it is a short, repeated data message.
Out of Range (OOR) Alert
Common Problem: Firefighter unknowingly loses communications with command and the team.
Solution: Firefighter receives a signal that he has lost communications through a visual and audible out of range alert tone.
Common Problem: Firefighter is out of radio coverage.
Solution: Using a patented P25 heartbeat technology, radio will activate OOR audible and visual indicators alerting first responder that he is no longer in range of command radio.
Com Check
Common Problem: Firefighter is unsure of radio coverage.
Solution: Firefighter can quickly depress a button to perform a communications check and determine the strength of his signal.
Visual & Audible Signal Strength Indicator
Common Problem: Firefighter does not know when he is out of communication range.
Solution: More than just a visual RSSI, an audible RSSI enhances awareness and safety. Two warning tones are emitted when the RSSI level drops below a predefined threshold to alert the firefighter that he is at the threshold of radio coverage. Four tones warn of impending communication loss.

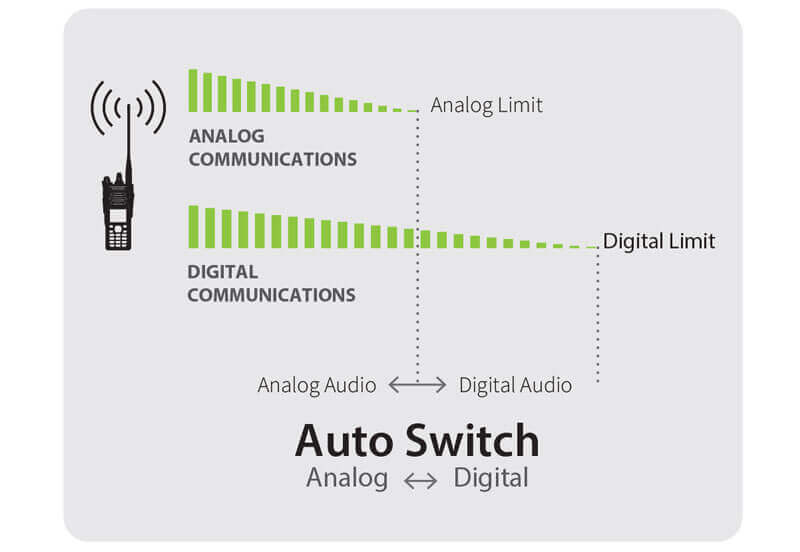

P25 Auto Switch
Common Problem: When nearing the out of range threshold, analog transmissions are very unclear.
Solution: FIRESafe extends coverage range. The radio automatically switches to digital mode when analog transmissions become unclear (4 beeps). Once transmissions become clear enough (2 beeps), the radio will automatically switch back to analog mode.
