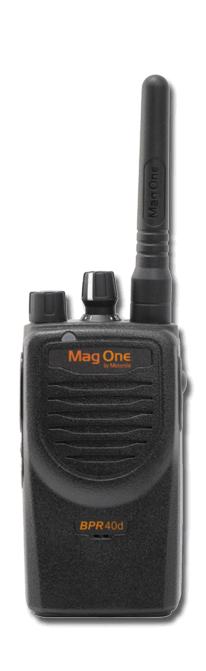

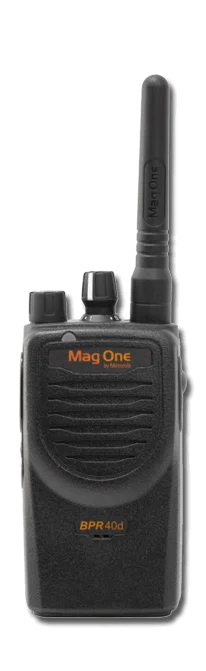

BPR40d
Motorola
Lightweight, powerful and affordable, with DMR II support.
The BPR40d radio supports analog communications for simple, familiar push-to-talk voice. It also supports the Digital Mobile Radio (DMR II) communications standard, giving you more range and clear voice connections, even at the edge of your coverage. Long battery life means continued communication that lasts an entire shift. Rugged and IP54 water-resistant for worry-free operation, while the radio's two-year warranty brings peace of mind.
Frequency Range:
UHF: 403 - 470 MHz
Power Output:
1W/4W
Number of Channels/Zones:
16 Channels
Standard battery chemistry type:
Li-ion
Battery life (based on a 5-5-90 duty cycle):
Digital: up to 15 hours
Analog: up to 12 hours
Channel spacing:
12.5/25 kHz
Dimensions H x W x D (with standard battery)
4.2 x 2.3 x 1.5 in.
Weight (with standard battery)
10.9 oz
Keypad / Keys
No Keypad
Display
No Display
Operating temperature
-30° to +60° C (Radio Only)
Mil spec
810 C, 810 D, 810 E, 810 F
IP Standards
IP54
Key features
- Supports analog and digital communications
- UHF, VHF
- 16 channels
- 1 - 4.0 Watts (UHF) / 1 - 5.0 Watts (VHF) Output Power
- MIL-STD 810 & IP54-Rated Durability
- Analog/Digital Operation
- Up to 15 hours of battery life
- Mixed-Mode Channel Scan
- Voice confirmation of button and knob actions
Rugged, Die-Cast Chassis
Polycarbonate housing helps protect your radio from everyday bumps and falls. Both radios are protected against splashing water (IPx4), while the BPR 40d is also protected against dust (IP54).
Digital Mobile Radio (DMR II) Support
Take advantage of advanced digital features, clear voice communications and greater coverage. Interoperate with other DMR radios.
Popular with these industries:
- Construction
- Education
- Hospitality
- Property Management
- Retail
Spec Sheets
Antenna
 | PMAE4020-N Mag One UHF Stubby Antenna, 450-470 MHz |
Batteries
 | PMNN4075_R-N Mag One Li-ion, 1500 mAh Battery (comp. with PMPN4140 charger base and PMLN5048_R charger kit only) |
Carry Accessories
 | PMLN4743 Mag One 2" Spring Belt Clip |
Chargers
 | 25009297001 Power Adapter |
 | PMPN4171-N CHGR DESKTOP SINGLE UNIT, US/NA |
Earpieces
 | PMLN6531 Ear Receiver with In-Line Mic/PTT/VOX Switch (Mag One) |
Headsets
 | PMLN6542 Mag One Ultra-Lite Headset, behind-the-head, adjustable with boom microphone and in-line push-to-talk |
Remote Speaker Mics
 | PMMN4092 Remote Speaker Microphone - Mag One |
The Motorola BPR40d is available in the following models.
UHF
- AAH85EDJ8AD3AN 403-470 MHz, 4W (Ships 1W), 16 Channels
